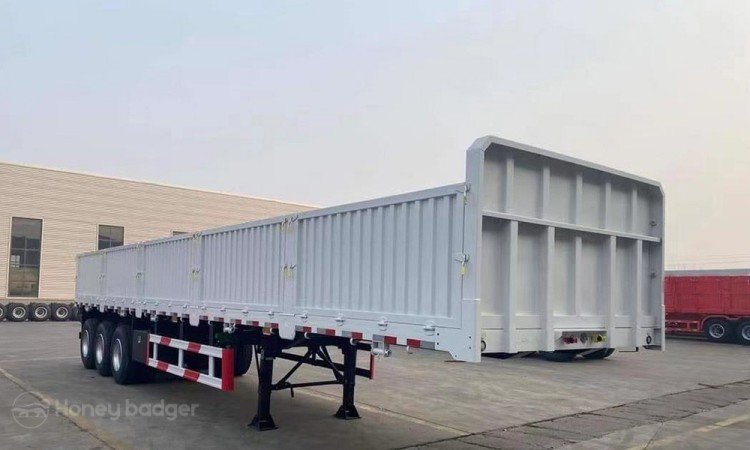

Sidewall Cargo Semi Trailer

$10,500

Sidewall Cargo Semi Trailer is used to transport various types of goods, including building materials, industrial raw materials, daily necessities, agricultural products, manufacturing products, etc.

Place of Origin: China
Brand Name: Honey Badger
Min. Order Qty: 1 Unit
Model: HB-Sidewall Cargo Semi Trailer
Shipment Term: Container Ship, Bulk Cargo Ship, RORO Ship.
Delivery Period: 15-20 workdays.

Air Chamber

6 sets

Axle Model/Quantity

Fuwa, 13T*3 sets

Bottom Plate Type/Thickness

Patterned, 2.0mm

Brake Valve Specification

Three-axle synchronization

Container Locking Device

12 sets (optional)

Dimensions of Cargo Box

12.3m*2.4m*0.8m

Kingpin

Approximately 3.5 inches

Landing Gear

Single action, 28T

Leaf Spring

10 pieces, standard type

Main Beam

Vertical plate 8mm, upper wing plate 14mm, lower wing plate 16mm

Main Beam Style

Straight beam

Overall Dimensions

12.5m*2.5m*2.7m

Side Beam

140# Channel steel

Sideboard Height

0.8m

Sideboard Type/Thickness

Flat sideboard 1.5mm

Suspended Beam

Mechanical suspension

Through Beam

High-strength bending parts

Tightening Rope

Standard

Tires

Triangle 1200R22.5*12sets

Toolbox

1 standard type

sidewall CAD

The sidewall semi-trailer is a semi-trailer with a sidewall structure for the cargo loading part. It is widely used and mainly suitable for medium to heavy and bulk cargo transportation over medium to long distances. Its strong adaptability has made it the preferred choice for medium and long-distance freight vehicles.

Sidewall Cargo Semi Trailer
Features

1. Sturdy Structure: The sidewall semi-trailer is made of high-strength steel, ensuring adequate strength and durability during transportation.
Sidewall Cargo Semi Trailer

2. Easy Loading and Unloading: Due to the sidewall design, goods can be conveniently loaded and unloaded from the side, suitable for transporting various types of cargo, including bulk and packaged goods.
Sidewall Cargo Semi Trailer
3. Versatility: The sidewalls can be removed as needed to accommodate goods of different sizes and shapes, providing greater flexibility.
Sidewall Cargo Semi Trailer
4. Good Ventilation: The sidewall design offers excellent ventilation, beneficial for transporting goods that require ventilation, such as agricultural products.
Sidewall Cargo Semi Trailer
5. High Safety: The sidewalls effectively prevent goods from sliding or shifting during transportation, increasing the safety of transportation.
6. Easy Maintenance: Due to its relatively simple structure, the maintenance and repair of the sidewall semi-trailer are relatively easy.
7. Lightweight: The sidewall semi-trailer is relatively lightweight, which helps improve transportation efficiency and fuel economy.
