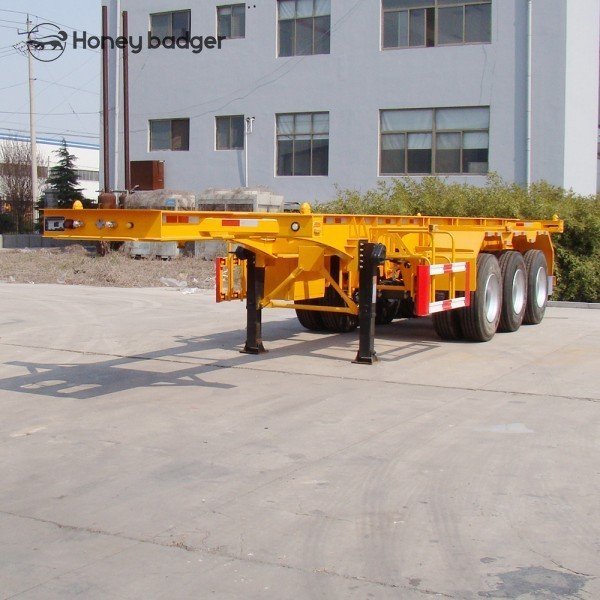

40 FT Skeleton Semi Trailer

$8,500

40 FT Skeleton Semi Trailer is a semi-trailer specially designed for transporting containers. The main feature of this semi-trailer is that its structure is similar to a skeleton, without a flatbed or cargo platform, primarily consisting of a steel framework to support and secure containers. Skeleton semi-trailers are widely used in ports, docks, freight stations, and logistics centers for long-distance freight and container transportation.

Main Beam

Vertical plate 8mm, upper wing plate 14mm, lower wing plate 16mm

Main Beam Style

Straight beam

Through Beam

High-strength bending parts

Air Chamber

6 sets

Suspended Beam

Mechanical suspension

Leaf Spring

10 pieces, standard type

Axle Model/Quantity

13T*3 sets

Tires

Triangle 1200R22.5*12sets

Toolbox

1 standard type

Container Locking Device

12 sets

Landing Gear

Single action, 28T

Kingpin

Approximately 3.5 inches

Brake Valve Specification

Three-axle synchronization

Overall Dimensions

12.45m*2.55m*1.5m

skeleton CAD

Skeleton semi-trailer is a semi-trailer specially designed for transporting containers. The main feature of this semi-trailer is that its structure is similar to a skeleton, without a flatbed or cargo platform, primarily consisting of a steel framework to support and secure containers. Skeleton semi-trailers are widely used in ports, docks, freight stations, and logistics centers for long-distance freight and container transportation.

Advantages

1. Lightweight: Due to its simple structure, the skeletal semi-trailer is lightweight, which helps increase the vehicle’s load capacity and fuel efficiency.
2. Simple Structure: Its straightforward design makes maintenance easy, reducing repair and upkeep costs.
3. High Flexibility: Capable of accommodating different sizes and types of containers, offering a wide range of applications and strong adaptability.
4. Cost-Effective: Low production costs and long service life effectively reduce transportation and operational expenses.
5. Easy Loading and Unloading: The open structure design facilitates more convenient loading and unloading of containers, enhancing work efficiency.
6. High Safety: Reasonable design can ensure the stability and safety of containers during transportation.
