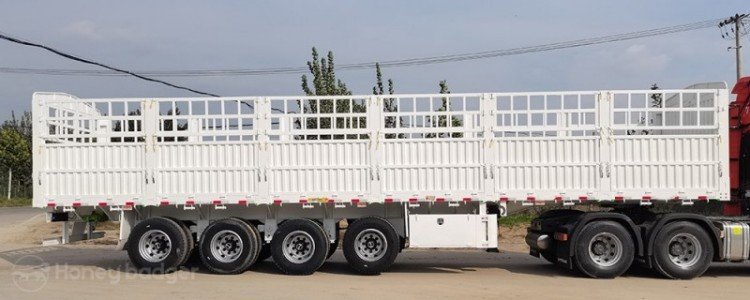

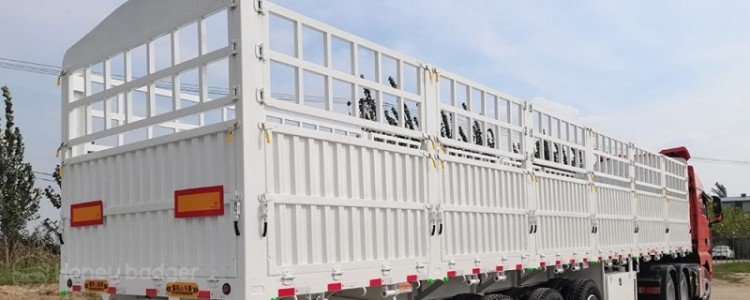

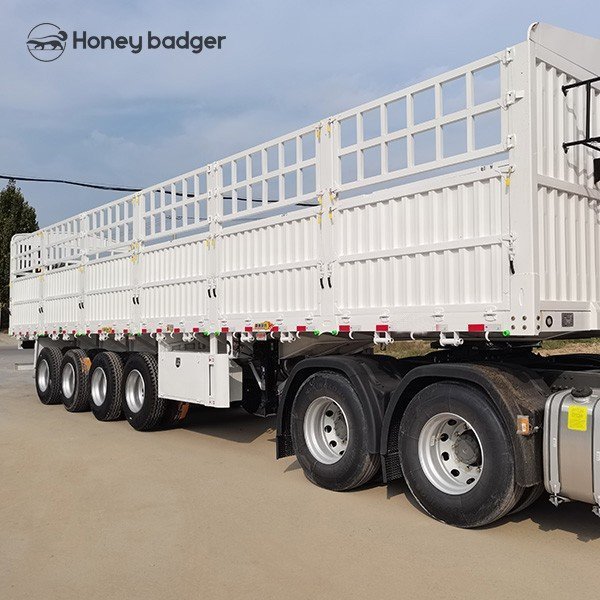

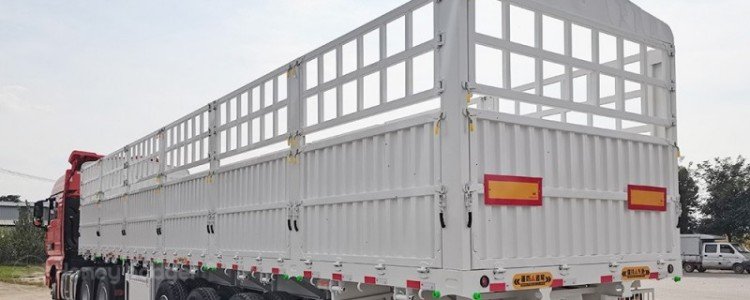

4 Axle Fence Cargo Semi Trailer
$12,800
4 axle fence cargo semi-trailer is mainly used for agricultural product transportation: fence semi-trailer is usually used to transport vegetables, fruits, grains and other agricultural products. The fence design provides good ventilation, keeping the goods fresh and preventing spoilage.
Place of Origin: China
Brand Name: Honey Badger
Min. Order Qty: 1 Unit
Model: HB-Tri Axles Fence Cargo Trailer
Shipment Term: Container Ship, Bulk Cargo Ship, RORO Ship.
Delivery Period: 15-20 workdays.
| Air Chamber | 6 sets |
|---|---|
| Axle Model/Quantity | Fuwa, 13T*4 sets |
| Bottom Plate Type/Thickness | Patterned, 2.0mm |
| Brake Valve Specification | Three-axle synchronization |
| Container Locking Device | Optional |
| Dimensions of Cargo Box | 12.3m*2.4m*1.8m |
| Door Height | 1.0m+0.8m |
| Kingpin | Approximately 3.5 inches |
| Landing Gear | Single action, 28T |
| Leaf Spring | 10 pieces, standard type |
| Main Beam | Vertical plate 8mm, upper wing plate 12mm, lower wing plate 14mm |
| Main Beam Style | Straight beam |
| Overall Dimensions | 12.5m*2.5m*3.5m |
| Side Beam | 140# Channel steel |
| Sideboard Type/Thickness | Corrugated 1.5mm |
| Suspended Beam | Mechanical suspension |
| Through Beam | High-strength bending parts |
| Tightening Rope | Standard |
| Tires | Triangle 1200R22.5*16sets |
| Toolbox | 1 standard type |
The fence semi-trailer is a type of semi-trailer designed with a fence structure in the cargo area. It is primarily used for transporting agricultural products and other light, bulky goods.
Features
1. Well-ventilated: The fence design offers excellent ventilation, making it particularly suitable for transporting goods that require ventilation, such as agricultural products and livestock, ensuring the freshness and health of the cargo.
2. Cargo Protection: The carriage adopts a fence design with a solid structure, which can effectively prevent the goods from slipping during transportation and ensure the safety of the goods.
3. Easy Inspection and Maintenance: The status of the cargo can be checked at any time during transportation, facilitating monitoring and management. The open structure also makes cleaning and maintenance more convenient, reducing maintenance costs and time.
4. Convenient Loading and Unloading: The simple and practical fence design allows for easy disassembly and assembly, enabling flexible adjustments based on transportation needs, thus improving transportation efficiency.
5. Wide Application Range: Fence-style semi-trailers are suitable for transporting various types of goods, including agricultural products, livestock, building materials, and large equipment, and has a wide range of applications.
6. Lightweight: Through reasonable structural design and the use of high-quality materials, the weight of the carriage is minimized while ensuring load capacity, improving transportation efficiency, reducing fuel consumption, and saving costs for users.
7. Strong Load Capacity: Made of high-strength steel and advanced welding technology, the structure is strong and durable, able to withstand heavy loads and long-term use.
