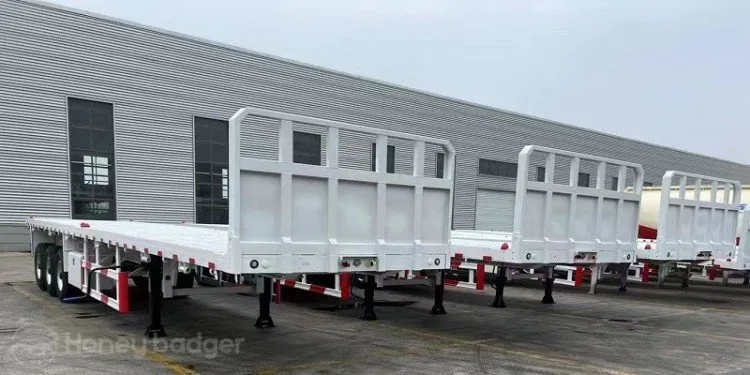

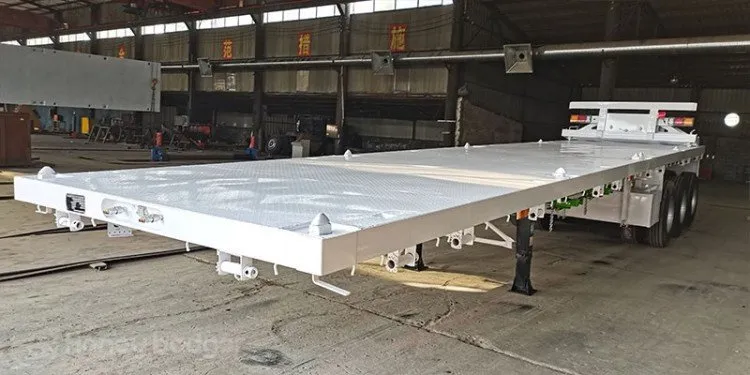

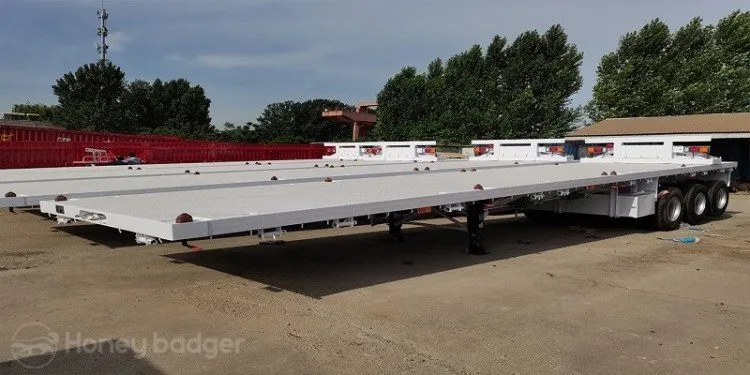

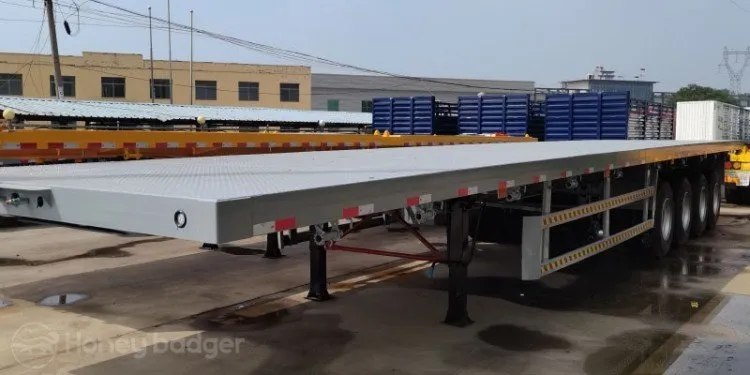

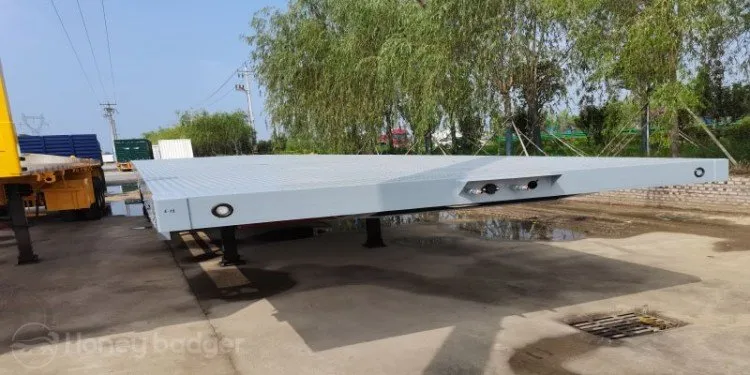

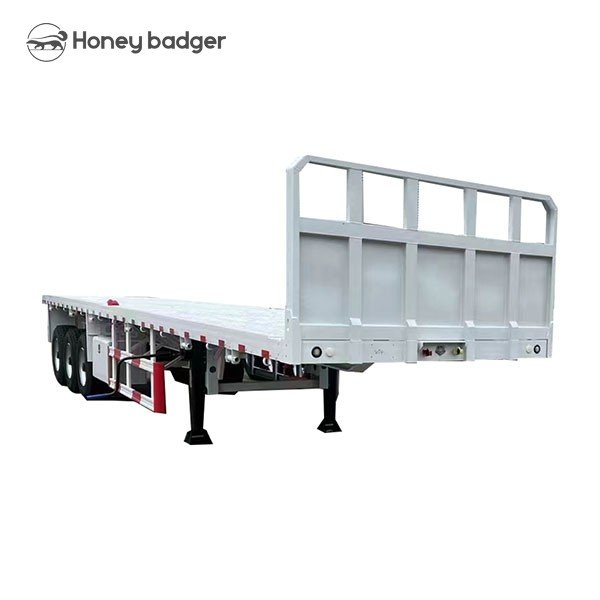

Name: 20|24|45|48|53 Ft Flatbed Trailer
SKU: 1975
Availability: InStock

Air Chamber	6 sets
Axle Model/Quantity	Guangdong Fuwa, 13T*3 sets
Bottom Plate Type/Thickness	Patterned, 3.0mm
Container Locking Device	12 sets
Kingpin	Approximately 3.5 inches
Landing Gear	Single action, 28T
Leaf Spring	10 pieces, standard type
Load Capacity	Net cargo 60 tons
Main Beam	Vertical plate 8mm, upper wing plate 14mm, lower wing plate 16mm
Main Beam Style	Straight beam
Side Beam	140# Channel steel
Suspended Beam	Mechanical suspension
Through Beam	High-strength bending parts
Tightening Rope	Standard
Tires	Triangle 1200R22.5
Toolbox	1 standard type

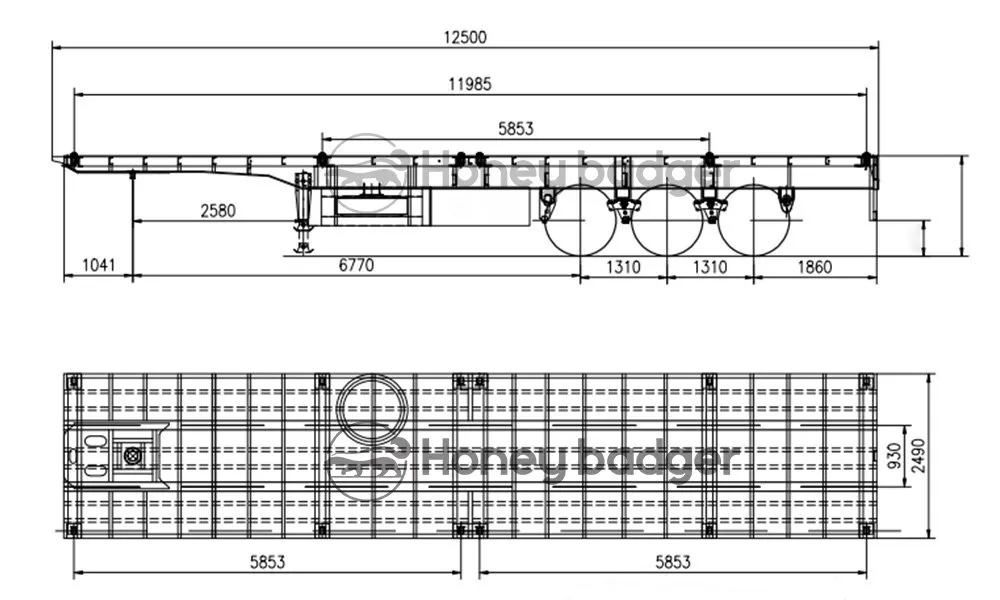

Vehicle Dimensions	Length 12.5 meters, Width 2.5 meters, Height 1.3 meters

Advantages

1. Wide Range of Applications
Flatbed Semi Trailers can transport various types of cargo, their broad applicability makes them widely used across multiple industries.

2. Simple Structure
The design of the Tri Axle Flatbed Semi Trailer is relatively simple, and this simple structure makes its repair and maintenance more convenient.

3. Easy Loading and Unloading
Flatbed Semi Trailers have no side panels or top panels, making loading and unloading of goods very convenient and improving loading and unloading efficiency.

4. High Load Capacity
The design of Flatbed Semi Trailers allows them to carry substantial weights, making them suitable for transporting heavy equipment and materials.

5. High Flexibility
Flatbed Semi Trailers can be adjusted according to the dimensions and shapes of the cargo. They are capable of transporting irregularly sized and extremely long items.

6. Good Stability
The low center of gravity and sturdy structure of Flatbed Semi Trailers provide excellent stability during transportation, this design effectively reduces risks during transit.

7. Adaptability to Different Environments
Flatbed Semi Trailers can adapt to various road and environmental conditions, including urban roads, highways, and rural paths.

8. Versatility
Flatbed Semi Trailers can be equipped with various attachments and devices, such as hydraulic lift systems, securing devices, and protective devices, to meet diverse cargo transport needs and enhance their functionality.

9. Low Maintenance Costs
The simple structure of Flatbed Semi Trailers results in a lower failure rate, making maintenance and repairs easier and reducing operational and maintenance costs.

10. Increased Transport Efficiency
The design of Flatbed Semi Trailers makes the loading and transport process more efficient, reducing loading and transport time, improving overall transportation efficiency, and lowering transportation costs.

Applications

Tri Axle Flatbed semi-trailers are widely used in the logistics and transportation industry due to their simple structure, easy loading and unloading, and large carrying capacity. They are suitable for transporting various large and heavy items. Below are some primary applications of flatbed semi-trailers:

1.Transport of Large Equipment: Flatbed Semi Trailers are extensively used for transporting various large equipment such as construction machinery, engineering machinery (e.g., excavators, bulldozers, rollers), factory equipment, and power generation equipment. These items are usually bulky and heavy, and the open design of flatbed semi-trailers makes loading and transporting them very convenient.

2.Transport of Building Materials:Building materials like steel, timber, concrete components, and pipes are often large and heavy. Flatbed Semi Trailers can easily carry these materials and allow for direct loading and unloading, reducing intermediate handling.

3.Container Transport: Although specialized container semi-trailers are more commonly used for container transport, Flatbed Semi Trailers can also be used for short-distance or non-standard size container transport. Their flexibility allows them to accommodate different sizes and types of cargo.

4.Wind Power Equipment Transport: The wind power industry requires the transport of large components of wind turbines, such as blades, towers, and nacelles. Due to their large size, Flatbed Semi Trailers are ideal for this purpose, ensuring stability and safety during transportation.

5.Transport of Steel Structural Components: In steel structure construction, various large steel components need to be transported. Flatbed Semi Trailers can meet the demand for transporting these large, heavy steel components, ensuring the construction schedule and quality.

6.Vehicle Transport: Flatbed Semi Trailers are also used for transporting various vehicles, such as cars, trucks, and buses, especially those that need to be transported over long distances, including new or used vehicles.
